VolksNav in Abu Dhabi

Click or doubleClick a point on map to know the logical indoor or area code of that point

Area codes like "Masdar City, Abu Dhabi m3:35 r255" consist of hours, minutes and radius according to following convention:

element meaning details
StatusQuo Abu Dhabi prefix of an urban position code

The urban pole is the Presidential Palace
m12

reference horizon hour

from urban pole to north,

m3 to sunrise, m6 to south etc.
number after ":", e.g. m12:5

horizon minutes,

blue lines

distance to horizon hour,


1 unity = 100 meters

r...,

e. g. r66

radius,

red lines

distance to urban pole,

1 unity = 100m

This map converts lat/lon to StatusQuo on a simplified mode, tolerable for radius < 10 km. For a professional conversion, see VolksNav.com/mapplet

--------

The division of the horizon into 12 directions can also be used global or indoor.

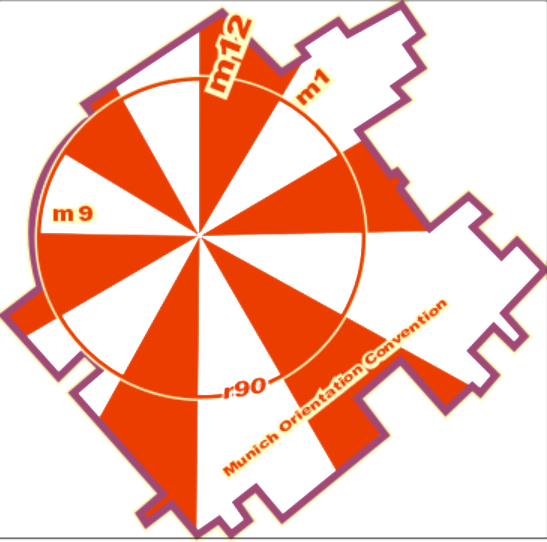

Example Louvre AbuDhabi m12:30 r96

l. 1 unity = 1 meter

Masdar City - Abu Dhabi m12:30 r95

m1 unity = 1 km

------------

Evolution
